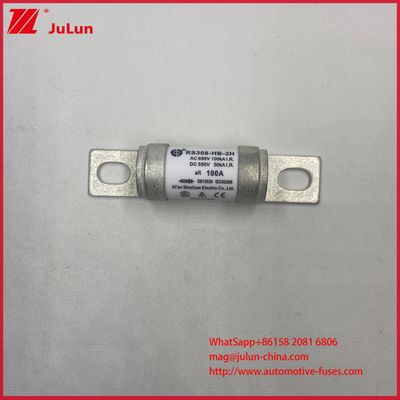

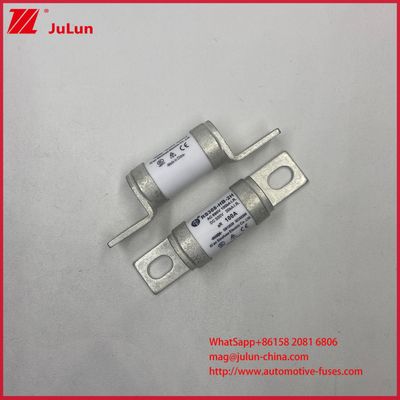

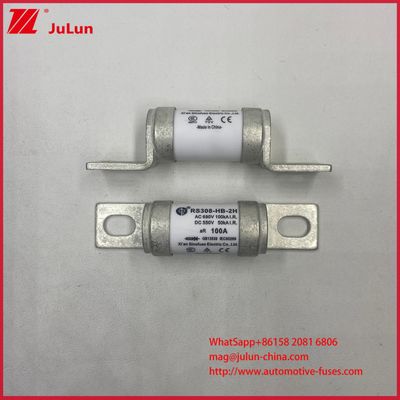

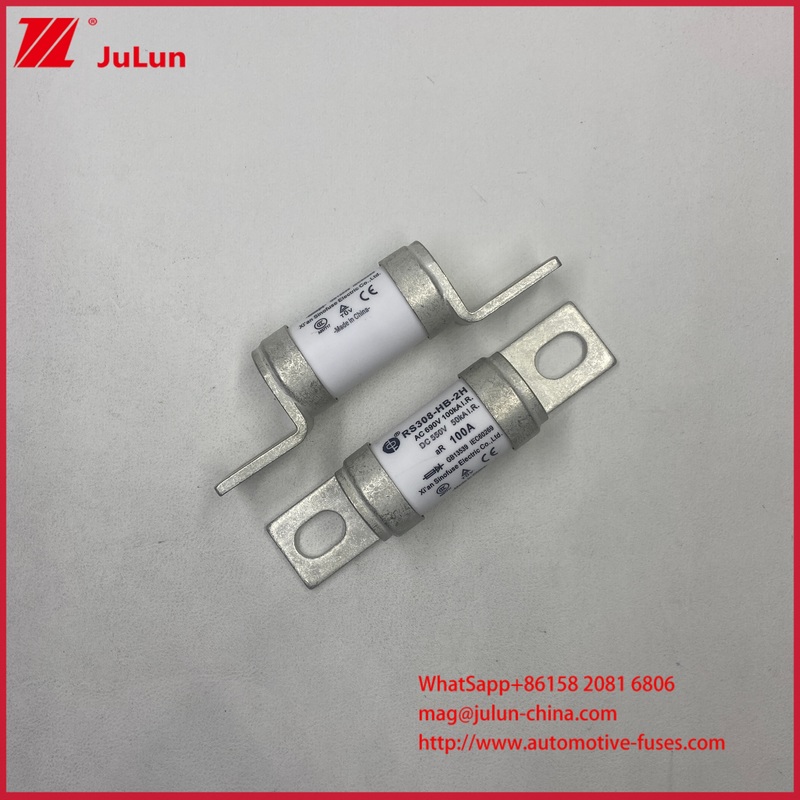

Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | SINO FUSE |
| گواهی: | UL |
| شماره مدل: | RS308-HB-2H 63A 80A |
پرداخت:
| Minimum Order Quantity: | 10 |
|---|---|
| قیمت: | 5~6USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| شرایط پرداخت: | TT، T/T |
| Supply Ability: | 1000K/PCS |
|
اطلاعات تکمیلی |
|||
| جریان رتبه بندی شده: | 10 آمپر تا 710 آمپر | پیچ نصب: | M6 M8 |
|---|---|---|---|
| روش نصب: | پیچ پیچ | مواد: | سرامیک مس نقره کوارتز شن و ماسه طلا |
| ویژگی: | اندازه کوچک با جریان نامگذاری بالا برای محافظت از مدار کوتاه | ظرفیت شکستن: | AC100KA@COSφ0.2، DC50KA@L/R≤10ms |
| عملکرد اشاره دارد: | IEC60269، و قابلیت اطمینان محیطی مطابق با ISO8820، JASO D622، و GB/T31465 است. | محصول کاربردی: | سیستم کشش EV، تبدیل نیرو، ذخیره انرژی، شارژر خودرو و غیره |
| برجسته کردن: | ceramic automotive fuses for round pipe,RS308-HB bolt connection fuses,200A 550VDC ceramic fuses,RS308-HB bolt connection fuses,200A 550VDC ceramic fuses |
||
توضیحات محصول
Fuses For Partial Range Protection Of Round Pipe Bolt Connection Type RS308-HB 200A 550VDC
In summary, the Ceramic Automotive Fuses combine compactness with high current capacity, robust ceramic construction, and dependable bolt-connected fast fuse mounting, making them an excellent choice for modern automotive electrical protection. Their compliance with international performance and environmental standards assures users of their quality and reliability. Whether for passenger cars, commercial vehicles, or specialized automotive equipment, these Ceramic Car Fuses provide effective and durable short circuit protection, helping to maintain electrical system integrity and vehicle safety.
Technical Parameters
| Performance Standard | IEC60269 |
|---|---|
| Environmental Reliability | Complies with ISO8820, JASO D622, and GB/T31465 |
| Rated Voltage | AC690V / DC550V |
| Installation Bolt | M6, M8 |
| Rated Current | 10A to 710A |
| Application | EV Traction System, Power Conversion, Energy Storage, Car Charger, and etc. |
| Mounting Method | Screw Bolt |
| Installation Mode | Recommended Tight Torque |
| Breaking Capacity | AC 100KA @ COSφ 0.2, DC 50KA @ L/R ≤ 10ms |
| Feature | Small Size with High Current Rating for Short Circuit Protection |
| Usage Category | AR |
